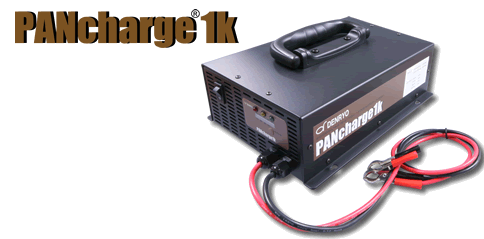

Battery Charger

pancharge1k

  • Optional system voltage of 12V, 24V, 36V and 48V
  • Large capacity and low cost
  • Safe design
  • Removable rubber foot and handle
  • Easy to be used by just pushing button
  • Worldwide universal Input voltage(100/200V)

Optional system voltage

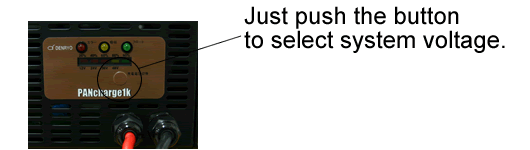

The voltage setting of PANcharge1k can be changed by the switch button. Just push the button to select system voltage of 12V, 24V, 36V, or 48V.

Easy to be used

pancharge1k_simple to use

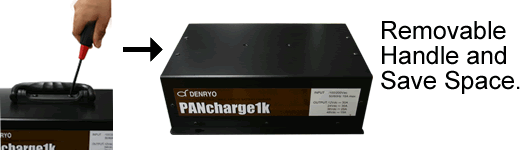

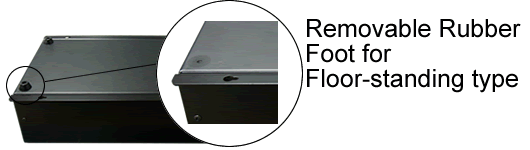

Removable rubber foot and handle

PANcharge1k_handle

PANcharge1k_gom

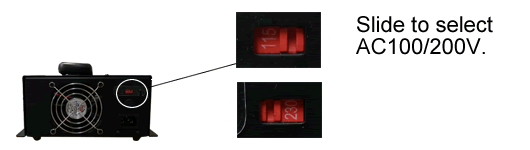

Worldwide universal Input voltage

PANcharge1k_voltage_en

Application

Automatically guided vehicle, maintenance vehicle and so on.

Marine vessel
Model
PANcharge1k
Input Voltage
90~120/180~240Vac
Frequency
50~60Hz
Max. Input Current
(at rated load)
≤20A
No-Load Current
≤0.1A
Battery Voltage
12V
24V
36V
48V
Battery Voltage Range
8~14.8Vdc
16~29.6Vdc
30~42Vdc
40~60Vdc
Charging Voltage
14.5Vdc
29Vdc
43.5Vdc
58Vdc
Float Charging Voltage
13.8Vdc
27.6Vdc
41.4Vdc
55.2Vdc
MAX Output Current
30A
30A
25A
15A
Absorption Current
2.25A
MAX Output Power
450W
900W
1000W
900W
MAX Efficiency
(at rated Load)
80%(Average)
Storage Temperature
-20~60℃
Ambient Temperature
0~40℃
Operating Humidity Range
5~95% RH(Non condensing)
Dimensions
300×223×95.3mm
(Without rubber foot and handle)
Weight
3.8kg
◆The specifications are subject to change without notice.
