Photovoltaic Module

DBG012-24/ DBG100-12/ DB090-12/ DB060-12/ DB050-12/ DB032T-12/ DB030-12
DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06

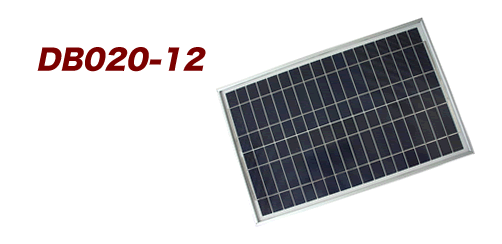

DB020-12

Model
DB020-12
Max. Power Point (Pmax)
20.0W
Max. Power Point Voltage (Vmpp)
17.0Vdc
Max. Power Current (Impp)
1.18A
Open Circuit Voltage (Voc)
21.6Vdc
Short Circuit Current (Isc)
1.25A
Dimensions (D×W×H)
35×538×350mm
Weight
2.6kg
◆The specifications are subject to change without notice.
