Model |

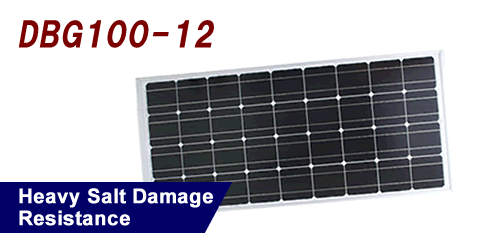

DBG100-12 |
|---|---|
| Max. Power Point (Pmax) | 100W |
| Max. Power Point Voltage (Vmpp) | 18.83Vdc |
| Max. Power Current (Impp) | 5.33A |
| Open Circuit Voltage (Voc) | 23.74Vdc |
| Short Circuit Current (Isc) | 5.64A |
| Dimensions (D×W×H) | 1216×549×45mm |
| Weight | 9.5kg |
◆The specifications are subject to change without notice.

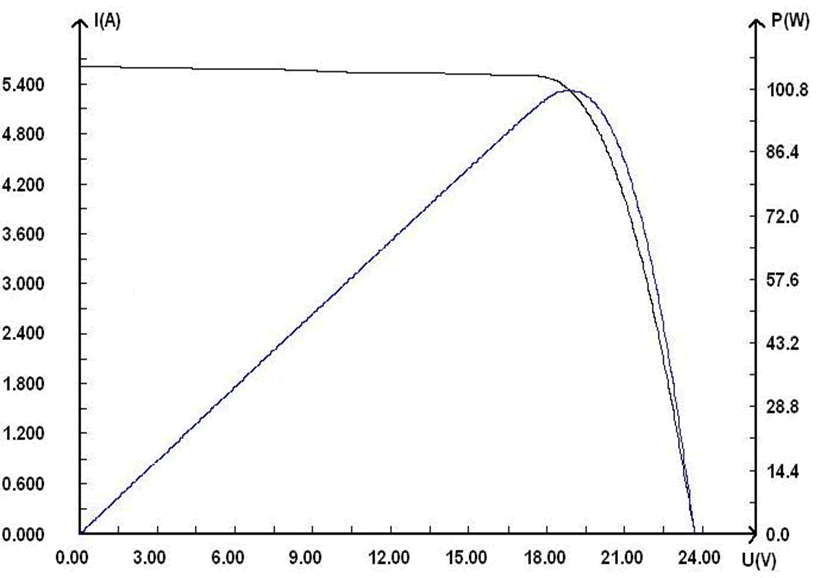

・I-V Curve
1000W/m2,25°C,AM1.5
