Photovoltaic Module
DBG012-24/
DBG100-12/
DB090-12/
DB060-12/
DB050-12/
DB032T-12/
DB030-12DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06
Model |

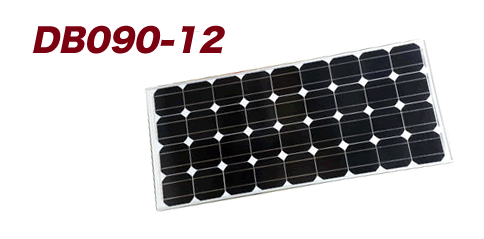

DB090-12 |
|---|---|
| Max. Power Point (Pmax) | 92.0W |
| Max. Power Point Voltage (Vmpp) | 18.72Vdc |
| Max. Power Current (Impp) | 4.92A |
| Open Circuit Voltage (Voc) | 23.38Vdc |
| Short Circuit Current (Isc) | 5.35A |
| Dimensions (D×W×H) | 35×527×1200mm |
| Weight | 7.6kg |
