Photovoltaic Module
DBG012-24/
DBG100-12/
DB090-12/
DB060-12/
DB050-12/
DB032T-12/
DB030-12DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06
Model |

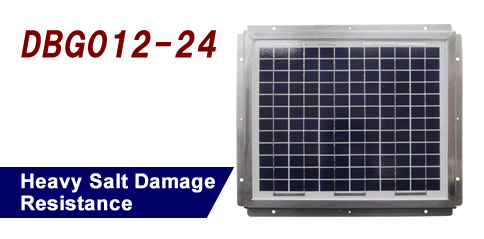

DBG012-24 |
|---|---|
| Max. Power Point (Pmax) | 12W |
| Max. Power Point Voltage (Vmpp) | 37.58Vdc |
| Max. Power Current (Impp) | 0.32A |
| Open Circuit Voltage (Voc) | 44.64Vdc |
| Short Circuit Current (Isc) | 0.34A |
| Dimensions (D×W×H) | 354×417×23mm |
| Weight | 2kg |
◆The specifications are subject to change without notice.

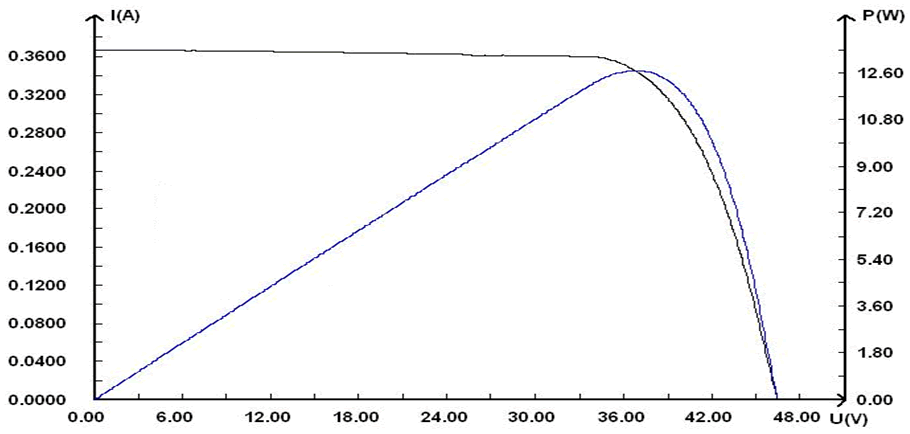

・I-V Curve
1000W/m2,25°C,AM1.5
