Solar Charge Controller

SolarAmp BG/ SolarAmp B/ SolarAmp B Auto Night Detection/
SolarAmp B For Lithium Battery/ SolarAmp mini/ DPLS-10

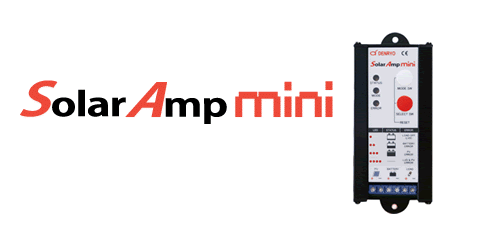

SolarAmp mini

  • NEW Up to 8.5A
  • NEW Reverse polarity protection
  • Night Light Control And Selectable Timers
  • Early Start Lighting Function
  • Unique Rate Timer
  • Self-Consumption Current Only 1mA
  • High Reliable Design From Japan
  • New Vertical Style Controller

Night Light Control and Selectable Timer

1. Normal Timer
Load ON 6, 8, 10, 12 or 14 hours of night time.

2. Dusk to Dawn
Load ON from dusk to dawn.

3. Rate Timer
The light is lighting only at the set rate, 40, 50, 60, 70 or 80% of night time. The setting does not have to be reset again even the night-time changes.



4. Night Light OFF
Load is always on.

Mode
Selectable Timer
Normal Timer
6,8,10,12,14 hours of Night Time
Dusk to Dawn
Load ON from Dusk to Dawn
Rate Timer
40, 50, 60, 70 , 80% of Night Time
Night light OFF
Load is always ON

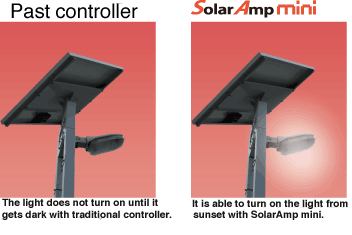

Early Start Lighting Function

Self-Consumption Current Less Than 1mA

In the off-grid system, any power consumption should be the less the better. Because the commercial power is not available in off-grid systems, the electricity generated by solar is so precious. One of the advantages SolarAmp mini has is that its self-consumption is less than 1mA. With low self-consumption, SolarAmp mini leads the systems to be stabler and longer. The more controllers you use, the more merits you can achieve.
Model
SA-MN05-8
System Voltage
12V
MAX Input Voltage
25Vdc
Solar Input Current
8.5A
Load Current
8.5A
Charging Method
PWM
Charging Voltage
Sealed : 14.1Vdc / Flooded : 14.4Vdc
AGM : 14.3Vdc / Gel : 14.0Vdc
Load Disconnect
11.5Vdc
Load Reconnect
12.5Vdc
Battery Types
AGM, Sealed, Flooded, Gel
Ambient Temperature Range
-20～60°C
Temperature Compensation
-30mV/°C
Self-Consumption Current
1mA
Dimensions
20×50×120(mm)
Weight
105g
◆The specifications are subject to change without notice.
