• 13 Options of Adjustable Lighting Controls
• Power Saving by PWM & PFM Control
• Switchable Capability of Manual Lighting Test
• High Weather Resistant Panel and Well-Designed Appearance Made by Powder Coating Skill
• Simple and Low Power-Consumption Display by Single LED Indicators

The Switch Controls of PWM ＆ PFM

The controller controls the output current by PMW in the regular circumstances. When the loads get low, the controller controls the current by PMF. These have improved the performance of system.

Low Self-Consumption

The self-consumption current of DPLS is about 9mA. It achieves a longer stability of the system. Moreover, it has also improved the performance of the system.

Lighting Control Options

DIP Switch Settings				Function
1	2	3	4
OFF	OFF	OFF	OFF	OFF
OFF	OFF	OFF	ON	4 hours ON
OFF	OFF	ON	OFF	4 hours ON -> 4 hours PWM Dimming to 25%
OFF	OFF	ON	ON	4 hours ON -> 6 hours PWM Dimming to 25%
OFF	ON	OFF	OFF	4 hours ON -> 8 hours PWM Dimming to 25%
OFF	ON	OFF	ON	6 hours ON
OFF	ON	ON	OFF	6 hours ON -> 4 hours PWM Dimming to 25%
OFF	ON	ON	ON	6 hours ON -> 6 hours PWM Dimming to 25%
ON	OFF	OFF	OFF	6 hours ON -> 8 hours PWM Dimming to 25%
ON	OFF	OFF	ON	8 hours ON
ON	OFF	ON	OFF	8 hours ON -> 4 hours PWM Dimming to 25%
ON	OFF	ON	ON	8 hours ON -> 6 hours PWM Dimming to 25%
ON	ON	OFF	OFF	Not Available
ON	ON	OFF	ON	Not Available
ON	ON	ON	OFF	Not Available
ON	ON	ON	ON	DUSK-to-DAWN

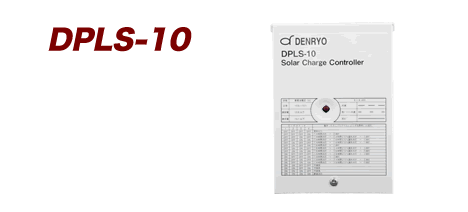

Model	DPLS-10
System Voltage	12Vdc
Max Input Voltage	20Vdc
Solar Input Current	10A
Load Current	10A
Charging Method	PWM & PFM
Charging Voltage	14.3V
Load Disconnect	10.5V
Load Reconnect	12.5V
Ambient Temperature Range	-20～60°C
Self-Consumption Current	4mA
Dimensions	95×131×35(mm)
Weight	410g

◆The specifications are subject to change without notice.
