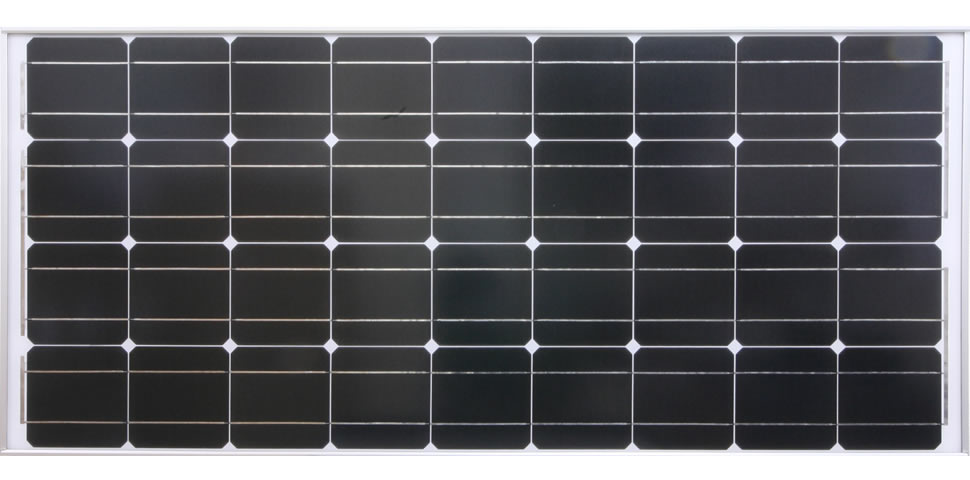

DB100-12

拡大写真
  • db100-12
  • db100-12
Model DB100-12
Max. Power Point (Pmax) 100W
Max. Power Point Voltage (Vmpp) 18.72V
Max. Power Current (Impp) 5.35A
Open Circuit Voltage (Voc) 23.40V
Short Circuit Current (Isc) 6.00A
Dimensions(W×H×D) 1200×527×35mm
Weight 7.6kg
◆The specifications are subject to change without notice.
◆Standard Test Condition：1000W/m²、25℃、AM1.5
