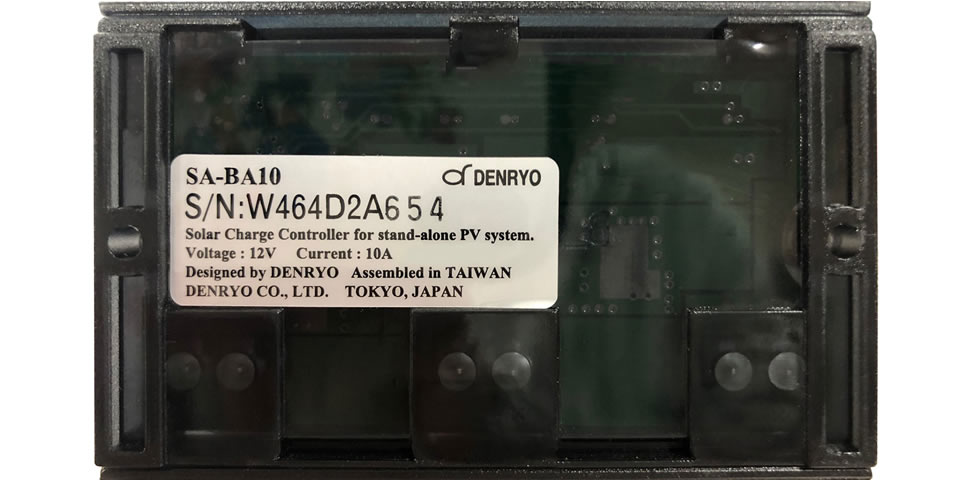

SolarAmp B
;)
;)
;)
;)
;)
;)
The World's Most Compact Design
In the same class of 10A and 20A solar charge controllers, SolarAmp B is the lightest one in the world. The size is as small as a business card, and it takes less space than other ones in the control box.
Various Product Lineup
Four models of products could be chosen, according the conjuction with system voltage (12V/24V), current capacity(10A/20A), types of batteries and the function of auto night detection.
Low Self-Consumption
The self-consumption current of SolarAmp B is about 2mA. It achieves longer stability of the system. Moreover, the low self-consumption has also improved the performance of the system.
Multiple Protection Circuitry
- Over / Low Voltage Protection
- Over Temperature Protection
- Reverse Polarity Protection
- Overload Protection
- Surge Protection
- Short-circuit Protection
Easy Installation
SolarAmp B is easy to be installed. Without any complicated setting steps, just connecting the controller to photovoltaic module, battery and DC load.
Over-Discharged Battery Recovery
SolarAmp B automatically resumes over-discharged battery by the battery recovery function. This benefits the systems in the some faraway areas in where the maintenance is difficult.
LED Indication
SolarAmp B is equipped with 5 LED indicators with 3 colors to indicate the charging status, the battery status, and the load status.
| Model | SA-BA10 | SA-BA20 | SA-BB10 | |
|---|---|---|---|---|
| System Voltage | 12V |
24V |
||
| Max. Input Voltage | 25Vdc |
50Vdc |
||
| Min. Input Battery Voltage | 6Vdc |
8Vdc |
||
| Max. PV Input Current | 10A |
20A |
10A |
|
| Max. Load Current | 10A |
20A |
10A |
|
| Self-consumption Current | 2mA(Typical) |
|||
| Load Operation | Always ON |
|||
| Charging Algorithm | 3-stage (Bulk, Absorption, Float) |
|||
| Bulk Charging Voltage | 14.4Vdc |
28.8Vdc |
||
| Float Charging Voltage | 13.7Vdc |
27.4Vdc |
||
| High Voltage Protection | 18Vdc |
36Vdc |
||
| Over Discharge Protection | Warning | |||
| LVD | ||||
| LVR | ||||
| High Temperature Protection | 60°C (Warning) /80°C (Error) /60°C (Recovery) |
|||
| Battery Type | ||||
| Wire Size | Max. | ＃12AWG |
＃10AWG |
＃12AWG |
| Min. | ＃18AWG |
＃12AWG |
＃18AWG |
|
| Grounding | Positive Ground |
|||
| Temperature Coefficient | -30mV/°C |
-60mV/°C |
||
| Operation Temperature | -20～60°C |
|||
| Storage Temperature | -30～70°C |
|||
| Humidity | 5～95％RH(non-condensing) |
|||
| Dimensions(W×H×D) | 91×55×29(mm) |
|||
| Weight | 65g |
70g |
65g |
|
